Mainly used for belt type press filter , rubber belt vacuum filter, horizontal belt vacuum filter.
Applicable to the municipal sewage sludge, sludge filtration enterprises. Press paper mill pulp, the use of concentrated fruit juice squeezing and other special industry.

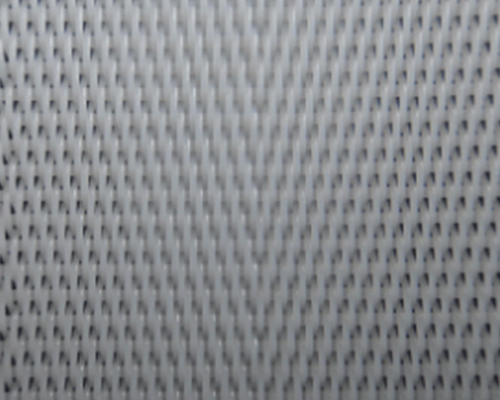

Features: since the net belt is herringbone design, sludge and net belt off quickly. Not sticky mud, easy cleaning, convenient and fast connection.
Technical Parameters:
Model | Filament Dia. (mm) | Density (root/cm) | Tensile strength (N/cm) | Weight Kg/m² | Thickness (mm) | Air permeability (m³/m²h) | CFM L/M² 200/Pa | |||||
Warp
| Weft | Warp | Weft | Surface | Joint | |||||||
31505 | 0.4 | 0.5 | 33 | 9 | 1600 | 900 | 0.8 | 1.3 | 2976 | 186 | ||
26508 | 0.5 | 0.5 | 28 | 18.5 | 1600 | 900 | 1.2 | 1.5 | 2050 | 128 | ||
2470 | 0.5 | 0.7 | 24 | 9 | 1600 | 900 | 1.23 | 1.9 | 7520 | 470 | ||
22903 | 0.5 | 0.9 | 23 | 5.5 | 1600 | 900 | 1.4 | 1.9 | 8480 | 530 | ||
27708 | 0.5 | 0.7 | 28 | 8.5 | 1600 | 900 | 1.53 | 2.0 | 4896 | 306 | ||
26908 | 0.5 | 0.9 | 26.2 | 6.2 | 1600 | 900 | 1.49 | 2.15 | 6080 | 380 | ||
24908 | 0.5 | 0.9 | 24.8 | 7.1 | 1600 | 900 | 1.48 | 2.1 | 7360 | 460 | ||
24808 | 0.5 | 0.8 | 24.8 | 8 | 1600 | 900 | 1.4 | 2.0 | 6880 | 430 | ||
16903 | 0.7 | 0.9 | 16.3 | 5 | 1600 | 900 | 1.5 | 2.1 | 7520 | 470 | ||
16903 Blue | 0.7 | 0.9 | 16.3 | 5.8/6 | 1600 | 900 | 1.7 | 2.1 | 5550/3968 | 347/248 | ||
15905 | 0.9 | 0.9 | 15.3 | 5 | 1600 | 900 | 2.1 | 2.77 | 7840 | 490 | ||
151105 | 0.9 | 1.1 | 15.3 | 6.3 | 1600 | 900 | 2.45 | 2.85 | 9280 | 580 | ||
12904 | 0.9 | 0.9 | 12.3 | 9.5 | 1600 | 900 | 2.2 | 3.5 | 9600 | 600 |
