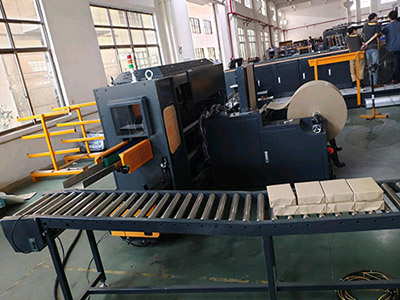

A4 paper cutting machine
Application:
For A4 paper cutting and wrapping.
Main technical data:
Paper Width: | Gross width 850mm,net width 840mm |
Cutting numbers: | 2 cutting-A4 210 (width) |
Paper roll’s diameter: | Max.Φ1450mm. Min.Φ600mm |
Paper core’s diameter: | 3”(76.2mm) or 6”(152.4mm) or according to the clients’ demand |
Packing Paper grade: | High-grade copy paper;High-grade writing print paper;high grade double-adhesive paper and other high grade paper |
Paper weight: | 60-100g/㎡ |
Sheet length: | Specially design for A4 paper,the cutting length is 297mm |
Ream amount: | 500 sheets Max. Height:45-55mm |
Production speed: | Max 0-300m/min |
Max Numbers of cutting: | Max 1010/min |
Output of the ream: | Max 16 reams/min |
Load of cutting: | 200g/㎡(2x100g/㎡) |
Cutting accuracy: | ±0.2mm |
Cutting condition: | 1.No variation of the speed 2.No break 3.All paper should be cut only 1 time 4.Qualified paper |
Drive: | AC frequency conversion stepless speed regulation |
Voltage: | 220V AC/24V DC |
Power: | 23kw |
Air consumption: | 200NL/min |
Air pressure: | 6bar |
Edge cutting: | 5-15mmx2 |
Main power supply: | 3*380V/50HZ |
A4 paper cutting machine
Application:
For A4 paper cutting and wrapping.
Main technical data:
Paper Width: | Gross width 850mm,net width 840mm |
Cutting numbers: | 2 cutting-A4 210 (width) |
Paper roll’s diameter: | Max.Φ1450mm. Min.Φ600mm |
Paper core’s diameter: | 3”(76.2mm) or 6”(152.4mm) or according to the clients’ demand |
Packing Paper grade: | High-grade copy paper;High-grade writing print paper;high grade double-adhesive paper and other high grade paper |
Paper weight: | 60-100g/㎡ |
Sheet length: | Specially design for A4 paper,the cutting length is 297mm |
Ream amount: | 500 sheets Max. Height:45-55mm |
Production speed: | Max 0-300m/min |
Max Numbers of cutting: | Max 1010/min |
Output of the ream: | Max 16 reams/min |
Load of cutting: | 200g/㎡(2x100g/㎡) |
Cutting accuracy: | ±0.2mm |
Cutting condition: | 1.No variation of the speed 2.No break 3.All paper should be cut only 1 time 4.Qualified paper |
Drive: | AC frequency conversion stepless speed regulation |
Voltage: | 220V AC/24V DC |
Power: | 23kw |
Air consumption: | 200NL/min |
Air pressure: | 6bar |
Edge cutting: | 5-15mmx2 |
Main power supply: | 3*380V/50HZ |
