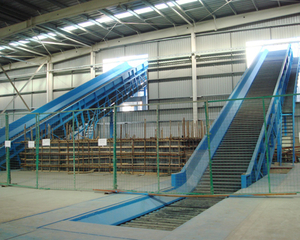

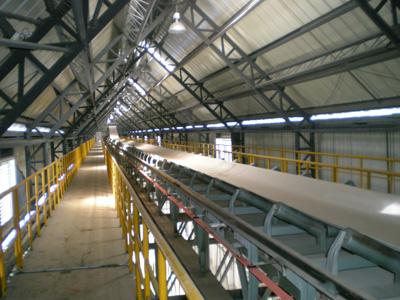

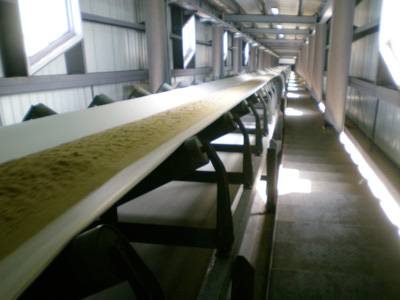

Belt Conveyor
Application:
It is widely used in mining, metallurgy industry to transport both of bulk materials and end products.
Advantage:
Large conveying capability, simple structure, standardized parts, easy maintenance
It can work with a unit set or work with other belt conveyor or other conveying equipment.
Main technical data:
Roller form | Tape speed (m/s) | Belt width | |||||
500 | 650 | 800 | 1000 | 1200 | 1400 | ||
Conveying capability(t/s) | |||||||
troughed rollers | 0.8 | 78 | 131 | ||||
1.0 | 97 | 164 | 278 | 435 | 655 | 891 | |
1.25 | 122 | 206 | 348 | 544 | 849 | 1115 | |
1.6 | 156 | 264 | 445 | 696 | 1048 | 1427 | |
2.0 | 191 | 323 | 546 | 853 | 11284 | 1748 | |
2.5 | 232 | 391 | 661 | 1033 | 1556 | 2118 | |
3.15 | 824 | 1233 | 1858 | 2528 | |||
4.0 | 2202 | 2996 | |||||
Parallel rollers | 0.8 | 14 | 67 | 118 | |||
1.0 | 52 | 88 | 147 | 230 | 345 | 460 | |
1.25 | 66 | 110 | 184 | 288 | 432 | 588 | |
1.6 | 84 | 142 | 236 | 368 | 553 | 753 | |
2.0 | 103 | 174 | 289 | 451 | 677 | 922 | |
2.5 | 125 | 211 | 350 | 546 | 821 | 111 | |
