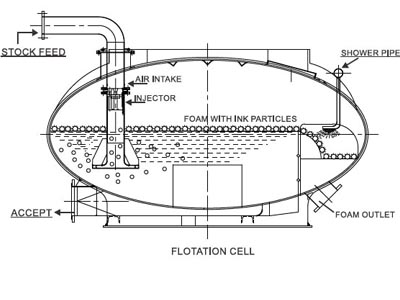

Horizontal Flotation Heinking Cell
Application:
It used for removing the dust and ink particles in the waste paper pulp,so as to get high quality paper pulp.
Advantage:
1.Self-priming can generate turbulence in different degree and bubbles in different size,more beneficial to remove ink particles and dust.
2.Wide range ink separation ,less fiber loss.
3.All floatation cells use one liquid level control circuit,easy to operate.
4.Large throughput,small floor space.
5.Can be lay flat or stacked up.
Main technical data:
Model | ZFE 115 | ZFE 135 | ZFE 155 | ZFE 175 | ZFE 195 | ZFE 1115 | ZFE 1135 | ZFE 1155 | ZFE 1175 | ZFE 1195 |
Flow rate (m3/h) | 420 | 520 | 780 | 1050 | 1300 | 1550 | 1750 | 2300 | 2500 | 3250 |
Capacity(t/d) | 80 | 100 | 150 | 200 | 250 | 300 | 350 | 450 | 500 | 650 |
Inlet consistency (%) | 0.9-1.3 | |||||||||
Ink removal rate (%) | ≥95 | |||||||||
