Summary:

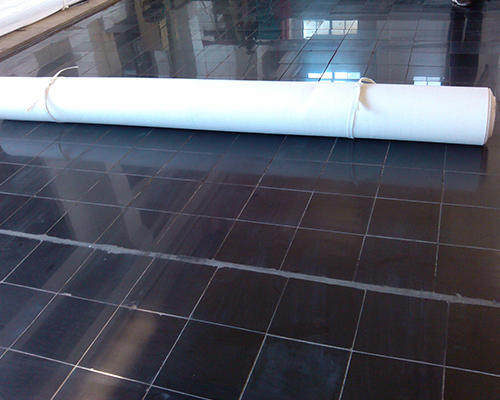

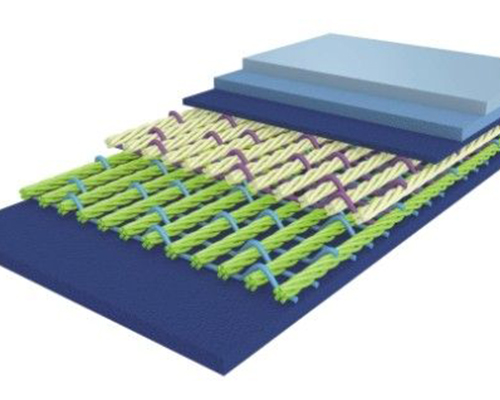

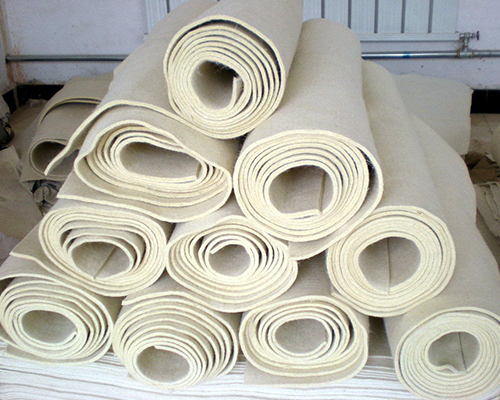

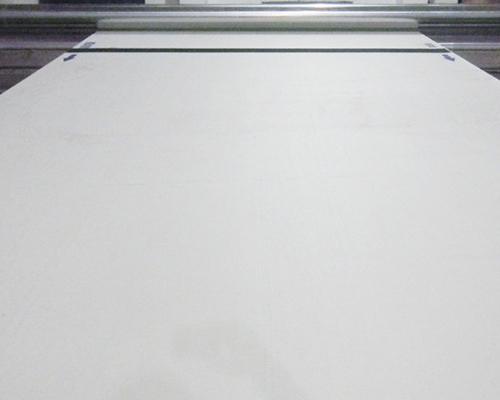

Double Layer BOM Felt includes 1+1 composite structure and double layer of MD yarn structure. 1+1 composite structure BOM is consisted of two different thickness of base material. Both of these base materials can be changed to different construction and sizes to suit the requirement of different paper machines. It process high quality properties such as high-pressresistance, good flexibility, good permeability, good size stability, less elongation, excellent tensile strength and can eliminate vacuum marks, blind hole mark, groove mark etc. Applying to many kinds of press such as: groove press, vacuum suction press, multi-press, large diameter nip-roll press which can produce high-grade printing paper, newsprint, technical paper, packaging paper, high-grade paper board etc.
Double Layer BOM Felt | 1+1 Composite Layer BOM Fel | Double Layer Forming BOM Felt |
Double Layer Press BOM Felt | ||
Double Layer Of MD Yarn BOM Felt | Double Layer BOM Special Composite Press Felt | |
Double Layer Top BOM Felt |
Application:
Paper machine：Multi-cylinder,Super Forming, Fourdrinier ,Superposition Wire,Nip Wire Paper Making Machine ectfor different kinds of paper machine’s press felt and forming felt.
Machine Velocity：≤1000m/min
Paper：≥8g/m2
NIP：60~200kN/m
Technical Parameter For Double Layer BOM Felt
Felt GSM：950~1450g/m2
Felt GSM Tolerance：≤±4%
Air Permeability：30~110cfm
Tensile Strength：≥3000N/5cm
Elongation Percentage：≤0.6%
Width Variation：≤±2cm
Double BOM Felt | |||||
No | Product No. | GSM | Structure style | Application | Note |
1 | 47501 | 950—1300 | Double layer domestic material | Corrugating, kraft paper,package paper | Excellent tensile strength, good filtration, good adsorbability, dimension atability, long life performance |
2 | 47502 | 1000—1100 | Double layer domestic material | Corrugating, kraft paper,package paper | Excellent tension strength, good filtration, good ability to absorb, dimension stability, long life performance |
3 | 47504 | 900—1100 | Double layer domestic material | Corrugating, kraft paper,package paper | Excellent tensile strength, good filtration, good ability adsorbability, long life performance dimension stability |
4 | 47505 | 1100—1400 | Double layer domestic material | Write paper, printing paper, newspaper,?package paper, kraft paper | Lighten trace, high line press resistance, |
long life performance | |||||
5 | 47521 | 950—1300 | Double layer import material | Corrugating, kraft paper, | Excellent tensile strength, good filtration, anti-abrasion, long life performance, dimension stability |
package paper | |||||
6 | 47522 | 1000—1100 | Double layer import material | Kraft paper, paper board | Excellent tensile strength, good filtration, long life performance, anti-abrasion dimension stability |
7 | 47523 | 1200—1500 | Double layer import material | Write paper, printing paper, newspaper,?package paper, kraft paper | Lighten trace, high line press resistance, good filtration, dimension stability, long life performance |
8 | 47524 | 900—1100 | Double layer import material | Corrugating, kraft paper, package paper | Excellent tension strength, good filtration, long life performance, dimension stability |
9 | 47525 | 1200—1500 | Double layer import material | Big roll press for high-grade, package paper, paper borad | Lighten trace, high line press resistance, good filtration, dimension stability, long life performance |
