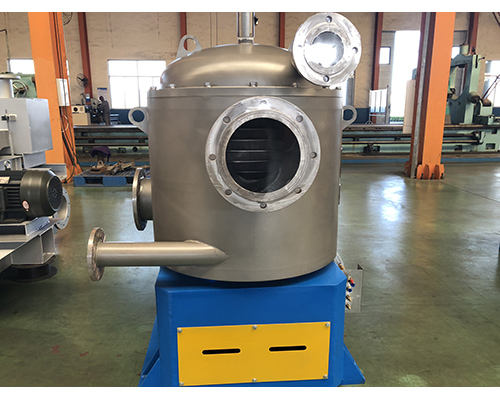

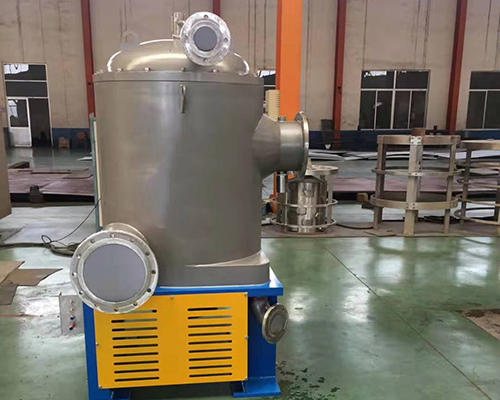

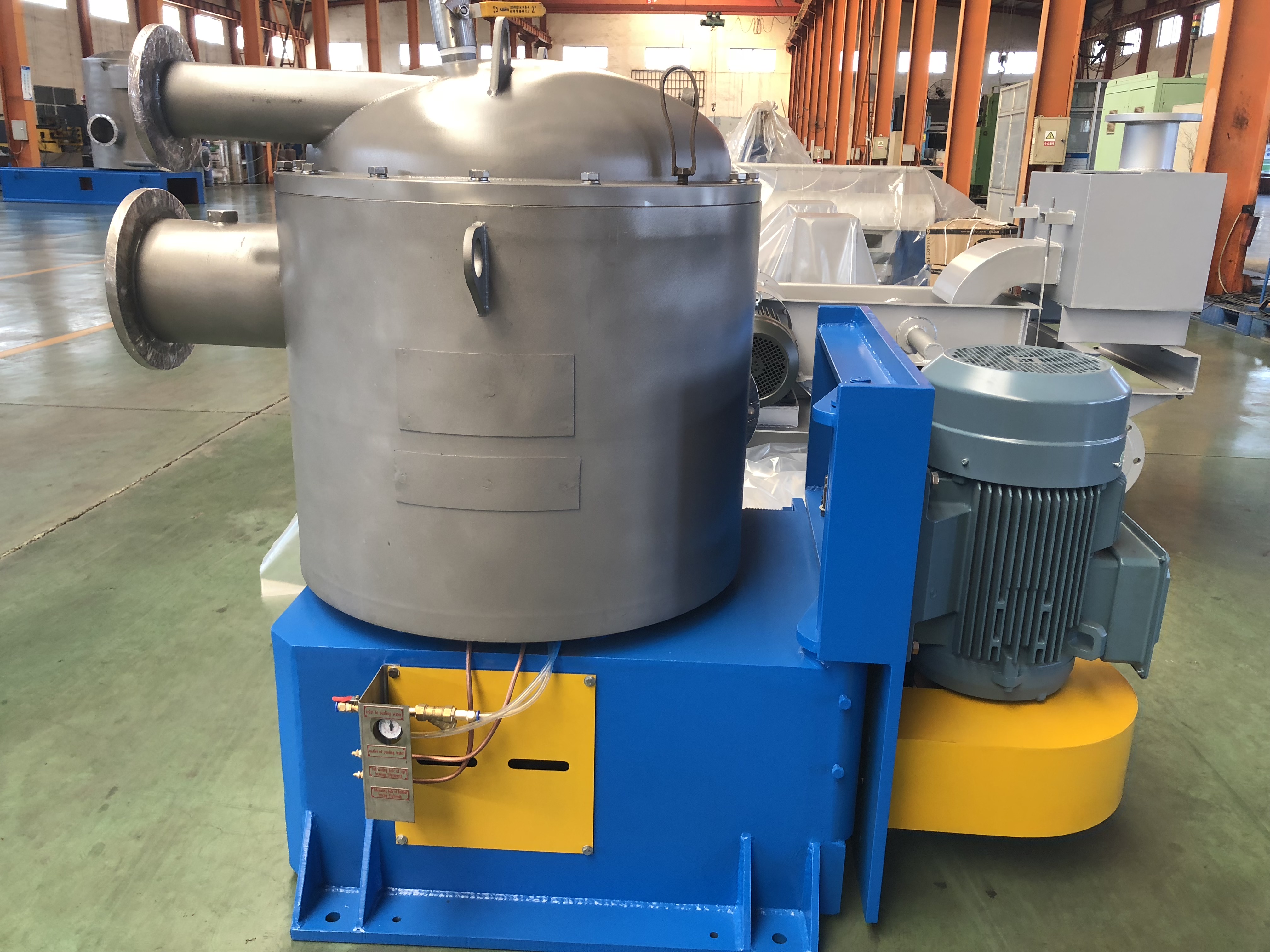

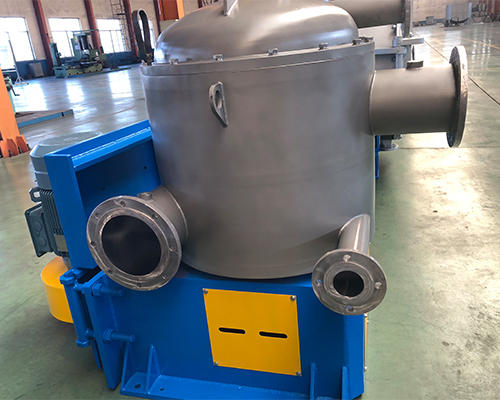

SCS Series Up-flow Coarse Screen
Application:
Used for various waste paper pulp of coarse screening.
Advantage:
1.Adopted the new high efficiency and energy saving up-flow screen rotor developed based on the fluid dynamics, it has the characteristics of high performance, big let flow processing capability, save 30%-60% of the power consumption and improve the efficiency of screening.
2.With special designed high flow structure, obtain higher producing capability; up-flow design, prolong the service life of the consumables.
Main technical data:
Model | EST400 | EST500 | EST600 | EST700 | EST1000 | EST1300 |
Screen slot size (mm) | Φ1.2-2.6 | |||||
Screen cut size (mm) | 0.3-0.7 | |||||
Capacity (t/d) | 250-400 | 350-500 | 400-600 | 500-700 | 900-1000 | 1100-1300 |
Inlet consistency (%) | 2.5-3.5 | |||||
Inlet pressure (mpa) | 0.15-0.3 | |||||
Motor power (kw) | 11-22 | 22-37 | 37-55 | 55-75 | 75-90 | 90-150 |
SCS Series Up-flow Coarse Screen
Application:
Used for various waste paper pulp of coarse screening.
Advantage:
1.Adopted the new high efficiency and energy saving up-flow screen rotor developed based on the fluid dynamics, it has the characteristics of high performance, big let flow processing capability, save 30%-60% of the power consumption and improve the efficiency of screening.
2.With special designed high flow structure, obtain higher producing capability; up-flow design, prolong the service life of the consumables.
Main technical data:
Model | EST400 | EST500 | EST600 | EST700 | EST1000 | EST1300 |
Screen slot size (mm) | Φ1.2-2.6 | |||||
Screen cut size (mm) | 0.3-0.7 | |||||
Capacity (t/d) | 250-400 | 350-500 | 400-600 | 500-700 | 900-1000 | 1100-1300 |
Inlet consistency (%) | 2.5-3.5 | |||||
Inlet pressure (mpa) | 0.15-0.3 | |||||
Motor power (kw) | 11-22 | 22-37 | 37-55 | 55-75 | 75-90 | 90-150 |
