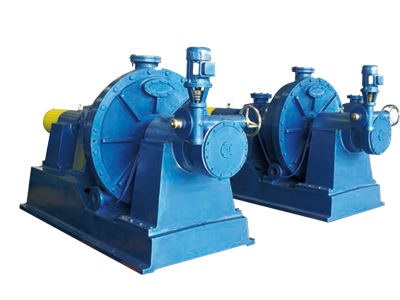

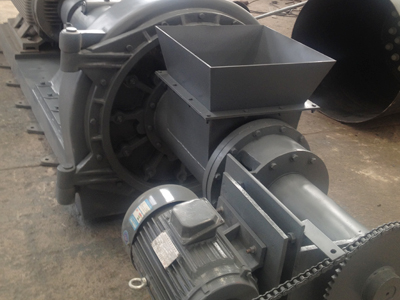

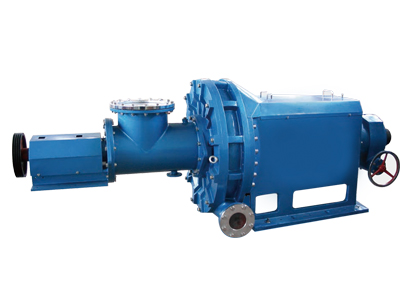

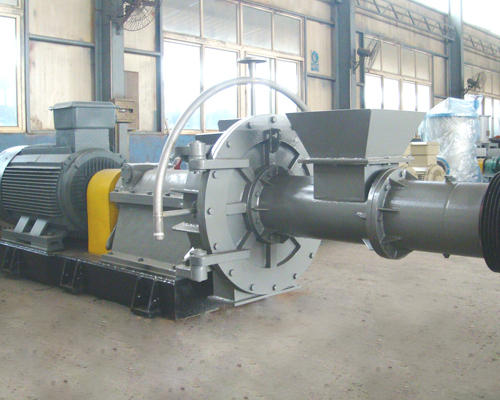

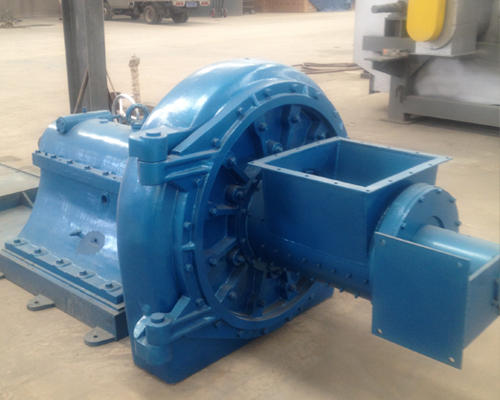

High Consistency Refiner
Application :
It is used for refining in high consistency. It is available for wood pulp, bulrush pulp, bagasse pulp, bamboo pulp etc.
It is furnished with automatic control system, pressure lubrication system, hydraulic performing system, detecting and protecting system.
The refining effect is stable.
Main technical data:
Model | ZGM 700 | ZGM 900 | ZGM 1100 | ZGM 1320 | ZGM 1470 | ZGM 1570 |
Dia. of disc plate (mm) | Φ700 | Φ900 | Φ1100 | Φ1320 | Φ1470 | Φ1570 |
Disc plate speed (r/min) | 1500 | |||||
Inlet consistency (%) | 25-30 | |||||
Capacity (t/d) | 50-110 | 70-180 | 100-260 | 150-350 | 200-450 | 350-600 |
Motor power (kw) | 355- 560 | 800- 1000 | 800- 1400 | 1000- 1800 | 1400- 2200 | 1800- 3000 |
