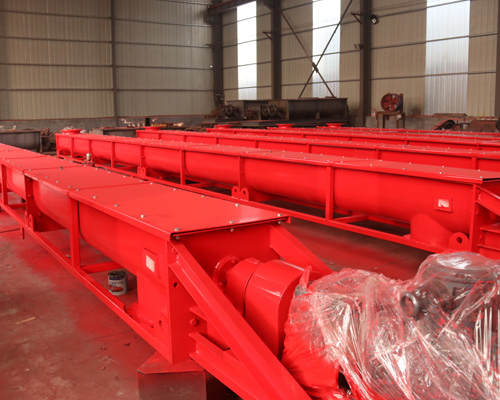

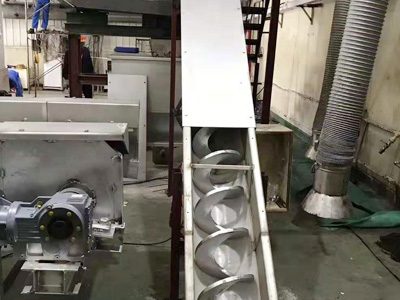

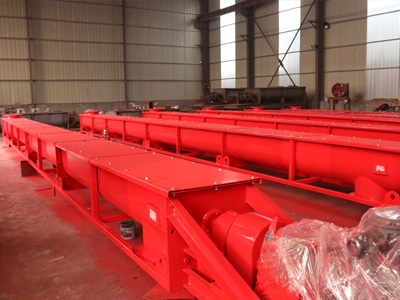

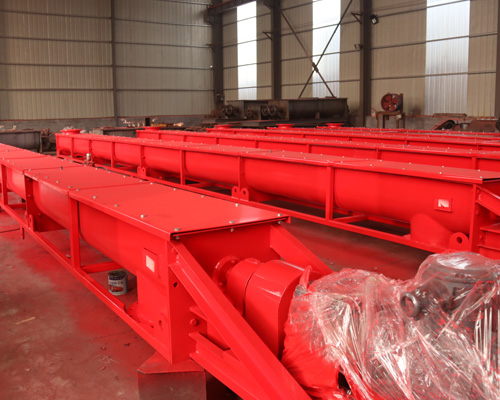

Screw Conveyor
Application:
It is used for long bin discharging, mainly used for wood chips bin or bamboo chips bin.
Advantage:
1.It can discharge materials continuously and without dead corner. Also, it has large conveying capability.

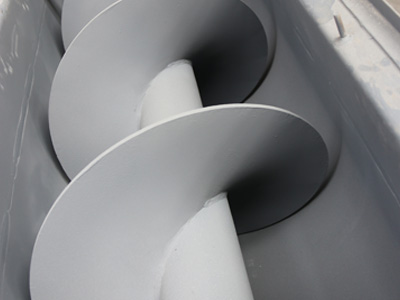

2.Conveying screws adopted variable diameter and pitch structure, materials in above 7 meters high can be discharged easily.
3.Place gear and rack on both ends of the long axis, more steadily while working.
4.Mobile long axis placed in conveying screw hollow axle, structure is more compact.
Main technical data:
Model | EST70 | EST55 | EST40 |
Conveying capacity (m3/h) | 200-250 | 100-150 | 40-100 |
Applicable bin volume (m3) | 500-1000 | 300-600 | 100-300 |
