Application:

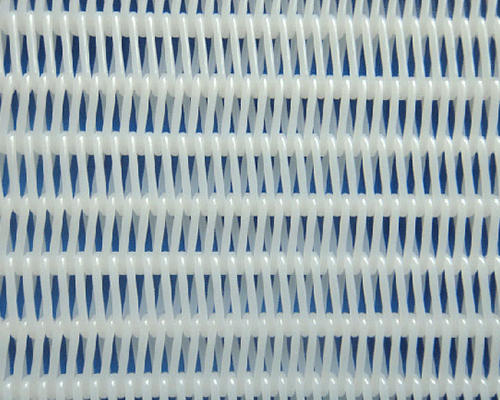

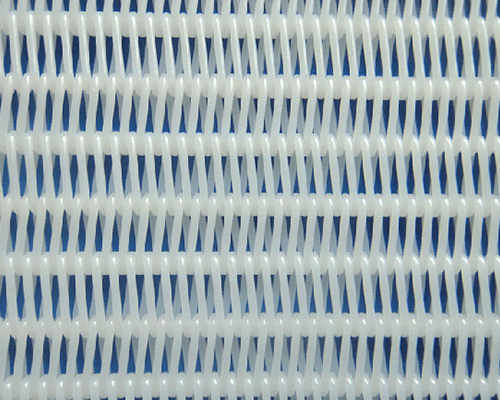

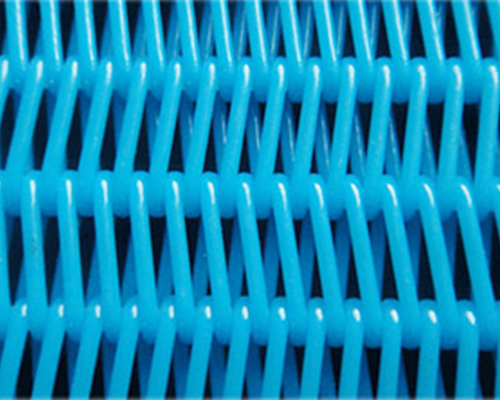

According to Finland standard with first-class monofilament,the polyester spiral dryer fabric has the characteristics of stable property and long work time.The polyester spiral dryer fabric is extensively used for producing cardboard,kraft paper,corrugated paper,paper for train fare,single two-shed press-filter,instead of papermaking machine dry blanket,canvas,as well as apply to colliery,food and medicine as conveyor belts.
Main technical data:
Types | Model | Spiral loop width (mm) | Filament Dia. (mm) | Tensile strength (N/cm) | Weight (kg/m²) | Thickness (mm) | Air permeability (m³/m²h) | CFM L/m² 127Pa | |
Spiral ring monofilament(mm) | Connection Wire(mm) | ||||||||
Supper loop | 90110 | 10 | 0.90 | 1.10 | 2300 | 1.64 | 3.03 | 20000 | 1250 |
Large loop | 6890A | 8 | 0.68 | 0.90 | 2000 | 1.31 | 2.45 | 18000 | 1125 |
Medium loop | 6890B | 7.15 | 0.68 | 0.90 | 2000 | 1.40 | 2.45 | 16000 | 1000 |
Small loop | 5080 | 5.2 | 0.50 | 0.80 | 1800 | 1.0 | 1.87 | 15000 | 937 |
Application:
According to Finland standard with first-class monofilament,the polyester spiral dryer fabric has the characteristics of stable property and long work time.The polyester spiral dryer fabric is extensively used for producing cardboard,kraft paper,corrugated paper,paper for train fare,single two-shed press-filter,instead of papermaking machine dry blanket,canvas,as well as apply to colliery,food and medicine as conveyor belts.
Main technical data:
Types | Model | Spiral loop width (mm) | Filament Dia. (mm) | Tensile strength (N/cm) | Weight (kg/m²) | Thickness (mm) | Air permeability (m³/m²h) | CFM L/m² 127Pa | |
Spiral ring monofilament(mm) | Connection Wire(mm) | ||||||||
Supper loop | 90110 | 10 | 0.90 | 1.10 | 2300 | 1.64 | 3.03 | 20000 | 1250 |
Large loop | 6890A | 8 | 0.68 | 0.90 | 2000 | 1.31 | 2.45 | 18000 | 1125 |
Medium loop | 6890B | 7.15 | 0.68 | 0.90 | 2000 | 1.40 | 2.45 | 16000 | 1000 |
Small loop | 5080 | 5.2 | 0.50 | 0.80 | 1800 | 1.0 | 1.87 | 15000 | 937 |
