Product description:

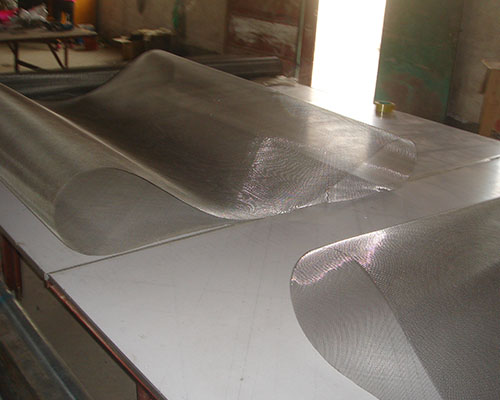

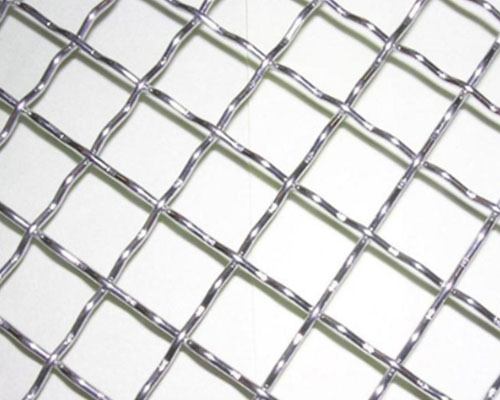

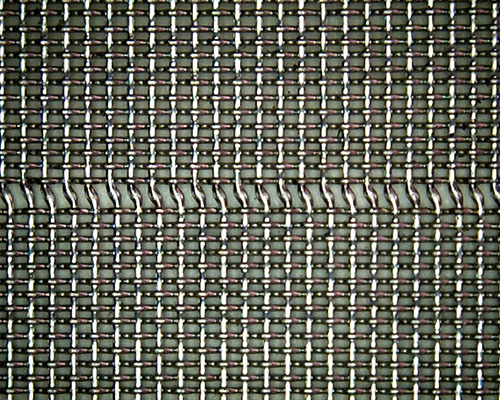

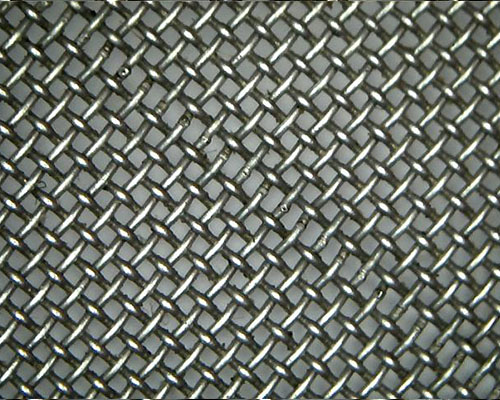

Stainless steel is acid resistance, alkali resistance, corrosion resistance, high temperature resistance.It is widely used in aviation, aerospace, petroleum chemical industry, food, pharmaceutical and other industries.We can supply square hole wire mesh:8-100Mesh,Width:1.5m-8m as follows:
Main technical data:
Mesh | Wire Dia.(mm) | Hole Dia.(mm) | Material |
8 | 1.00 | 2.16 | 304,304L,316L |
10 | 0.80 | 1.74 | 304,304L,316L |
14 | 0.65 | 1.10 | 304,304L,316L |
20 | 0.50 | 0.80 | 304,304L,316L |
30 | 0.35 | 0.50 | 304,304L,316L |
35 | 0.30 | 0.43 | 304,304L,316L |
40 | 0.25 | 0.38 | 304,304L,316L |
50 | 0.23 | 0.28 | 304,304L,316L |
60 | 0.19 | 0.23 | 304,304L,316L |
70 | 0.16 | 0.20 | 304,304L,316L |
80 | 0.14 | 0.18 | 304,304L,316L |
90 | 0.12 | 0.15 | 304,304L,316L |
100 | 0.11 | 0.14 | 304,304L,316L |
