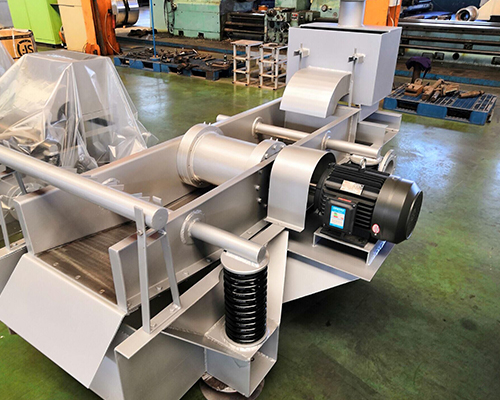

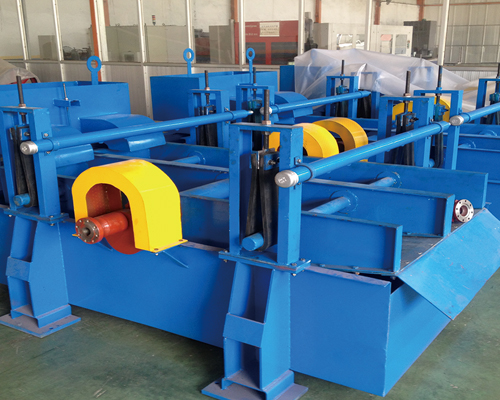

Vibration Screen
Application:
It is widely used for coarse screening of different kinds of pulps such as chemical pulp, semi-chemical pulp, mechanical pulp, TMP and waste paper pulp.
It is also used in fiber recovery from the rejects and scruff pulp in the pressure screen and separator.
Advantage:
Damping device is made of special rubber screen, made the frame vibrate steadily.
Two kinds of structure: spring type and condole belt type
Screen plate has higher self-cleaning ability thanks to special air seal room.
Main technical data:
Model | EST(d)1 | EST(d)2 | EST(d)3 | EST(d)4 | EST(d)5 | |
Screen area (m2) | 1 | 2 | 3 | 4 | 5 | |
Inlet consistency (%) | Slot screen | 1.2-1.5 | ||||
Cut screen | 0.5-0.8 | |||||
Screen plate specification (mm) | Slot | φ2.5-12 | ||||
Cut | 0.5-0.75 | |||||
Motor power (kw) | 2.2 | 3 | 4 | 5.5 | 5.5 | |
Out size (mm) | 2810*1930*1425 | 2810*1310*2220 | 2810*3245*1430 | 3590*3480*1480 | 4105*3332*1495 | |
