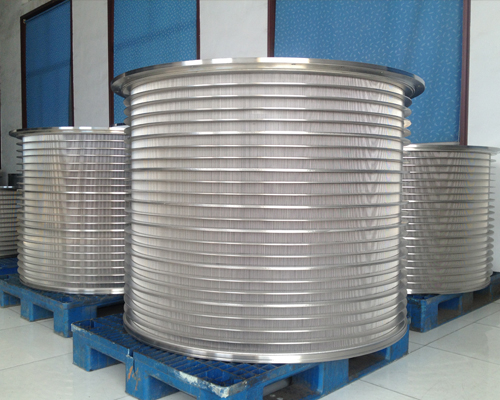

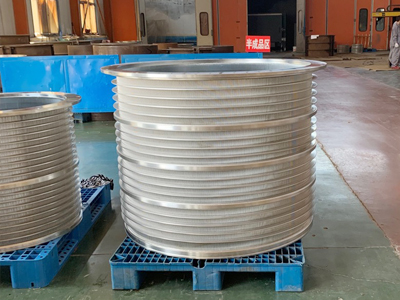

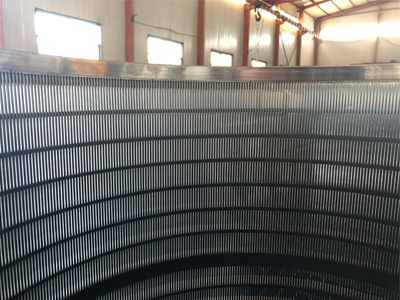

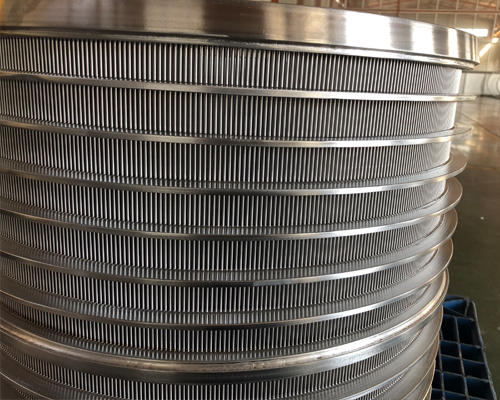

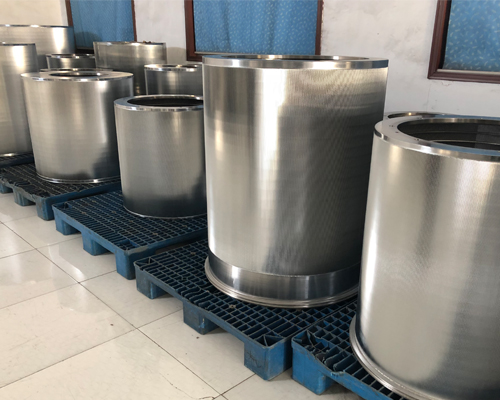

Wedge Wire Screen Basket
Application:
The most proper wedge bar will be selected according to different raw material and different processing position in order to develop good performance,achieve optimized screen effect and meet customer’s requirements.
Advantage:
Wedge bar material is SS316L after mechanical polishing.Good processing technology ensures fit precision of wedge bar and reinforce ring and make sure the evenness of the screen cut.
Main technical data:
Deviation of slot width:within ±0.02mm
Chroming thickness:0.20~0.30mm
Surface hardness:≥HRC60-66（HV700-900）
Plate area:0.4㎡~23㎡
