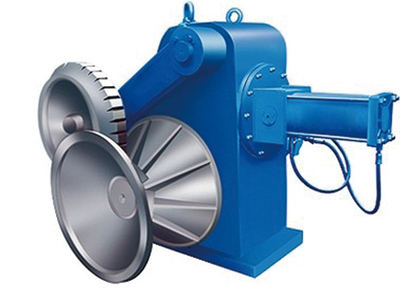

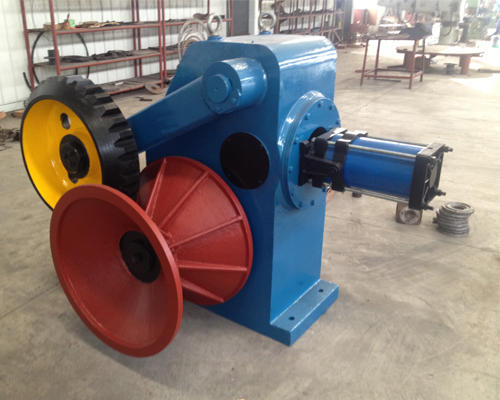

Ragger
Application:
It works together with the hydrapulper and served as coarse screening equipment. It twists all light impurities in waste paper stock (such as wires, plastics, cotton yarns, etc) into a strand and takes them out from the pulper.
Advantage:
The ragger mainly consists of the case, drive unit, winch wheel, elevator with loading wheel, etc.
The drive unit consists of the drive shaft, bearing, winch wheel and the 2-stage reducer connected directly with the reducer.
The elevator with loading wheel consists of the pneumatic cylinder, reversing valve, loading wheel and the loading arm, etc.
Main technical data:
Model | EST1 | EST2 |
Ragging speed (m/h) | 0-30 | |
Motor power (kw) | 2.2 | 3.0 |
Speed ratio of reducer | 29*29 | |
Compressed air pressure(mpa) | ≥0.15 | |
Ragger
Application:
It works together with the hydrapulper and served as coarse screening equipment. It twists all light impurities in waste paper stock (such as wires, plastics, cotton yarns, etc) into a strand and takes them out from the pulper.
Advantage:
The ragger mainly consists of the case, drive unit, winch wheel, elevator with loading wheel, etc.
The drive unit consists of the drive shaft, bearing, winch wheel and the 2-stage reducer connected directly with the reducer.
The elevator with loading wheel consists of the pneumatic cylinder, reversing valve, loading wheel and the loading arm, etc.
Main technical data:
Model | EST1 | EST2 |
Ragging speed (m/h) | 0-30 | |
Motor power (kw) | 2.2 | 3.0 |
Speed ratio of reducer | 29*29 | |
Compressed air pressure(mpa) | ≥0.15 | |
