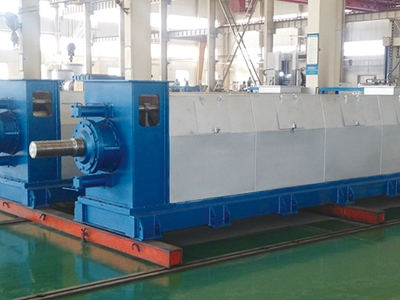

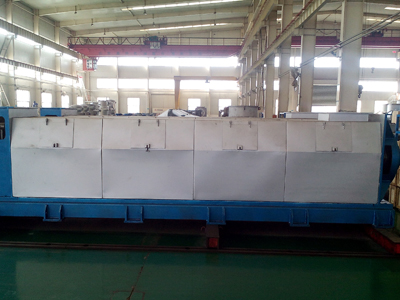

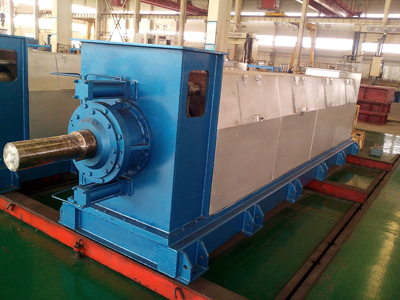

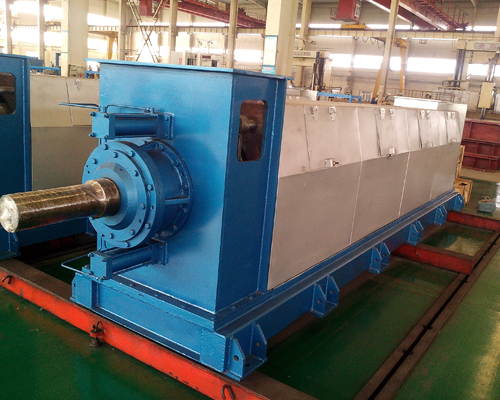

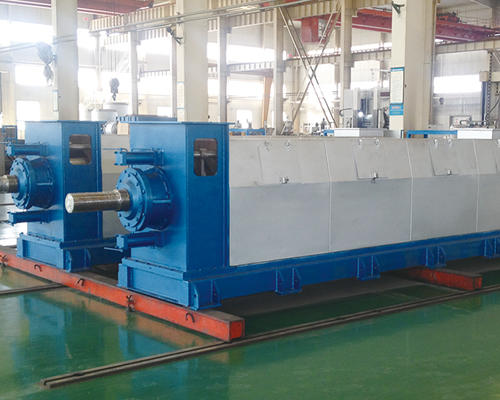

Screw Press Squeezer Machine
Application:
It is used for pulp dewatering and thickening.
Design features:
The screw spindle distributes the compression ratio reasonably along axial direction, which ensures a high thickening efficiency.
There is internal dewatering unit with holes in the pulp- out side, which ensures the consistency of dewatering effect of inside and outside of the pulp layer.
Pneumatic thrust reverser ensures the stability of the outlet consistency and helps to adjust the outlet consistency.
Easy maintenance
Main technical data:
Model | ZNJ45L | ZNJ60L | ZNG70L | ZNJ90L | ZNJ110L |
Dia of screw (mm) | Φ450 | Φ600 | Φ700 | Φ900 | Φ1100 |
Inlet consistency (%) | 9-12 | ||||
Outlet consistency (%) | 28-32 | ||||
Capacity (t/d) | 60-80 | 110-150 | 140-210 | 200-260 | 250-380 |
Power (kw) | 30-45 | 55-75 | 75-110 | 110-200 | 200-355 |
Screw Press Squeezer Machine
Application:
It is used for pulp dewatering and thickening.
Design features:
The screw spindle distributes the compression ratio reasonably along axial direction, which ensures a high thickening efficiency.
There is internal dewatering unit with holes in the pulp- out side, which ensures the consistency of dewatering effect of inside and outside of the pulp layer.
Pneumatic thrust reverser ensures the stability of the outlet consistency and helps to adjust the outlet consistency.
Easy maintenance
Main technical data:
Model | ZNJ45L | ZNJ60L | ZNG70L | ZNJ90L | ZNJ110L |
Dia of screw (mm) | Φ450 | Φ600 | Φ700 | Φ900 | Φ1100 |
Inlet consistency (%) | 9-12 | ||||
Outlet consistency (%) | 28-32 | ||||
Capacity (t/d) | 60-80 | 110-150 | 140-210 | 200-260 | 250-380 |
Power (kw) | 30-45 | 55-75 | 75-110 | 110-200 | 200-355 |
