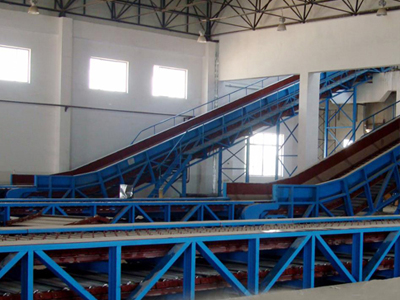

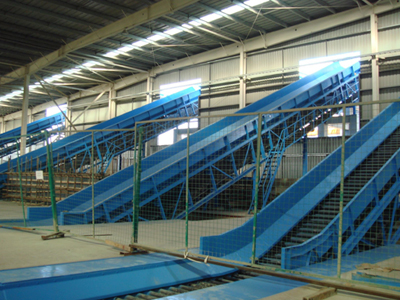

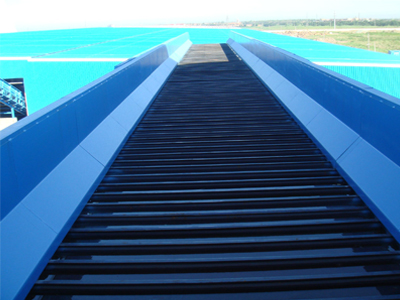

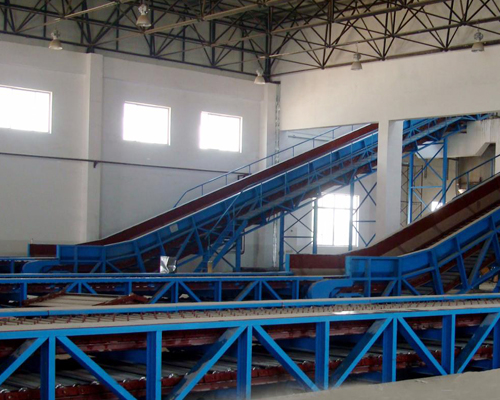

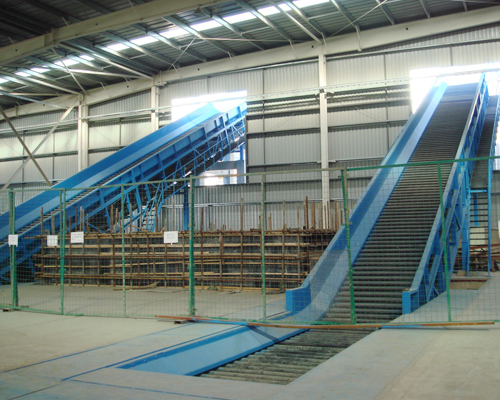

Chain Conveyor
Application:
It is specialized for conveying bundled waste paper, loose waste paper and pulp board
Advantage:
Stamped heavy slab with high strength and impact resistance
Drivers are directly connected with main spindle gear reducer coupling, which makes the force of the whole machine more scientific.
Chains are composed of heavy chains, heavy rollers, axis pin that can oil, heavy loading and high abrasion proof bush
Run on a pathway, steady and low friction, low consumption
Large conveying capability, operate steadily, low noise, easy to maintain.
Conveying length and height can be different according to customer’s requirements.
Main technical data:
Model | B 1200 | B 1400 | B 1600 | B 1800 | B 2000 | B 2200 | B 2400 |
Width of conveyor (mm) | 1200 | 1400 | 1600 | 1800 | 2000 | 2200 | 2400 |
Conveying speed (m/min) | 0-6 | ||||||
Inclined angle | 20-25° | ||||||
Motor power(kw) | 11-15
| 15-22 | 22-30 | 30-37 | 37-45 | ||
Chain Conveyor
Application:
It is specialized for conveying bundled waste paper, loose waste paper and pulp board
Advantage:
Stamped heavy slab with high strength and impact resistance
Drivers are directly connected with main spindle gear reducer coupling, which makes the force of the whole machine more scientific.
Chains are composed of heavy chains, heavy rollers, axis pin that can oil, heavy loading and high abrasion proof bush
Run on a pathway, steady and low friction, low consumption
Large conveying capability, operate steadily, low noise, easy to maintain.
Conveying length and height can be different according to customer’s requirements.
Main technical data:
Model | B 1200 | B 1400 | B 1600 | B 1800 | B 2000 | B 2200 | B 2400 |
Width of conveyor (mm) | 1200 | 1400 | 1600 | 1800 | 2000 | 2200 | 2400 |
Conveying speed (m/min) | 0-6 | ||||||
Inclined angle | 20-25° | ||||||
Motor power(kw) | 11-15
| 15-22 | 22-30 | 30-37 | 37-45 | ||
