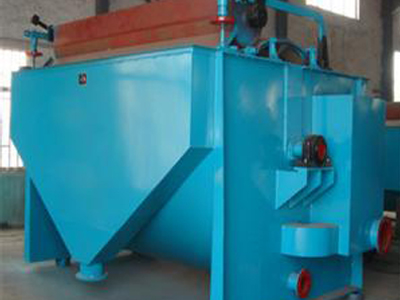

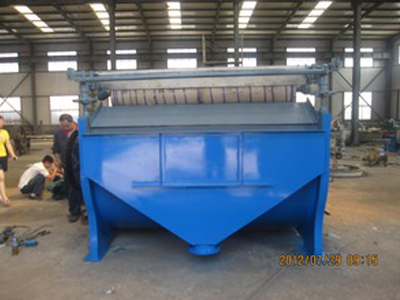

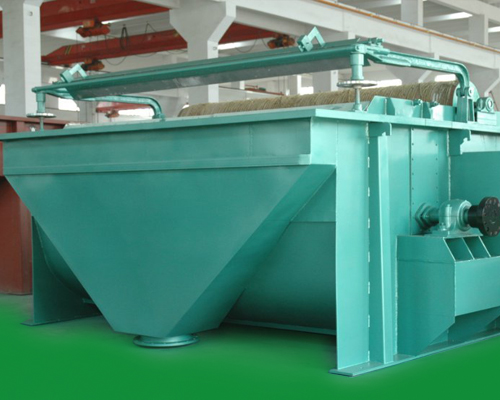

Cylinder Thickener
Application:
It is used for washing and thickening low consistency pulp.
Advantage:
1.Simple structure, safe in operation
2.Easy to control the outlet consistency and white water consistency.
3.High bulk pulp layer, strong tiny impurities penetrability and good washing effect
Main technical data:
Model | ZNW 22 | ZNW 23 | ZNW 24 | ZNW 25 | ZNW 30 | ZNW 35 | ZNW 40 | ||||
Filtrating area (m2) | 10 | 15 | 20 | 25 | 30 | 35 | 40 | ||||
Inlet consistency (%) | 0.3-1.2 | ||||||||||
Outlet consistency (%) | 4-6 | ||||||||||
Motor power(kw) | 7.5 | 11 | 15 | 18.5 | 22 | ||||||
Capacity (t/d) | Straw pulp | 0.8-1t(㎡·d) | |||||||||
Bulrush pulp | 2-2.5t(㎡·d) | ||||||||||
Chemical wood pulp | 3-3.5t(㎡·d) | ||||||||||
Waste paper pulp | 1.5-2t(㎡·d) | ||||||||||
Cylinder Thickener
Application:
It is used for washing and thickening low consistency pulp.
Advantage:
1.Simple structure, safe in operation
2.Easy to control the outlet consistency and white water consistency.
3.High bulk pulp layer, strong tiny impurities penetrability and good washing effect
Main technical data:
Model | ZNW 22 | ZNW 23 | ZNW 24 | ZNW 25 | ZNW 30 | ZNW 35 | ZNW 40 | ||||
Filtrating area (m2) | 10 | 15 | 20 | 25 | 30 | 35 | 40 | ||||
Inlet consistency (%) | 0.3-1.2 | ||||||||||
Outlet consistency (%) | 4-6 | ||||||||||
Motor power(kw) | 7.5 | 11 | 15 | 18.5 | 22 | ||||||
Capacity (t/d) | Straw pulp | 0.8-1t(㎡·d) | |||||||||
Bulrush pulp | 2-2.5t(㎡·d) | ||||||||||
Chemical wood pulp | 3-3.5t(㎡·d) | ||||||||||
Waste paper pulp | 1.5-2t(㎡·d) | ||||||||||
