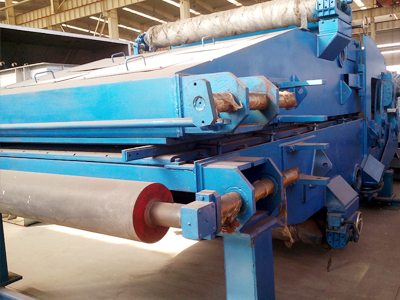

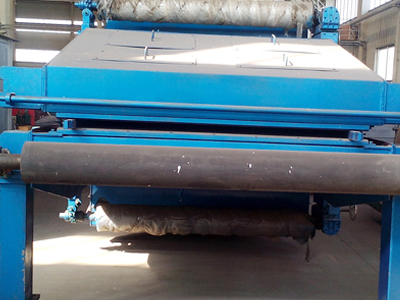

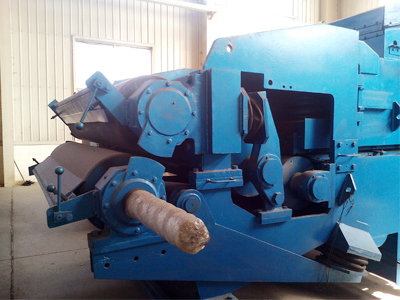

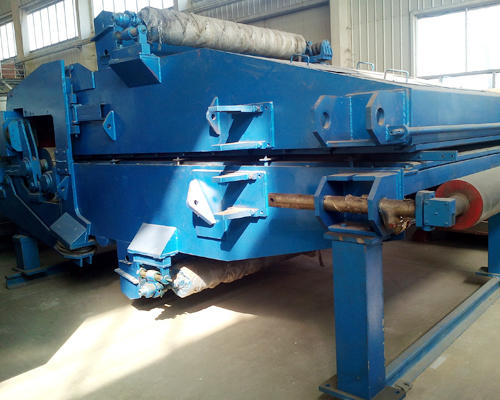

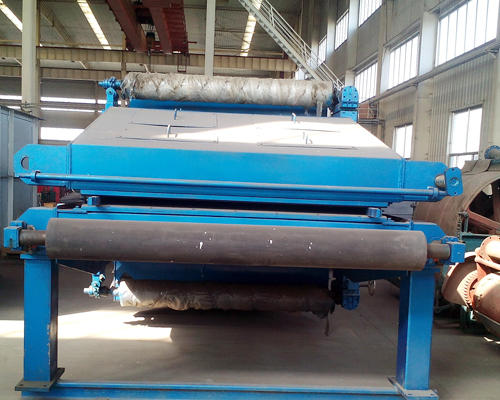

Paper Pulp Double Wire Press Squeezer
Application:
It is used for washing and thickening mechanical pulp, chemical pulp and waste paper pulp, especially for heat dispersion system and pulp thickening in high consistency bleaching.
Advantage:
1.Variable frequency speed regulation
2.Long pressure area, high thickening rate
3.Wide pulp adaptability, less fiber loss
4.Stable pulp consistency, steady working
Main technical data:
Model | ZNTS 1400 | ZNS 1600 | ZNS 1800 | ZNS 2000 | ZNS 2200 | ZNS 2400 | ZNS2600 | ZNS 2800 | ZNS 3000 |
Working width (mm) | 1400 | 1600 | 1800 | 2000 | 2200 | 2400 | 2600 | 2800 | 3000 |
Inlet consistency (%) | 3.5- 4.5 | ||||||||
Outlet consistency (%) | 25-35 | ||||||||
Inlet pressure (mpa) | 50- 100 | 60- 110 | 70- 120 | 80- 140 | 90- 160 | 100- 180 | 110- 200 | 120- 200 | 130- 250 |
Air source pressure (mpa) | 18.8*2 | 22*2 | 30*2 | 37*2 | |||||
