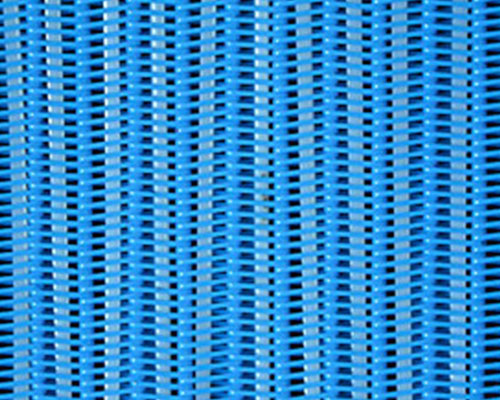

Spiral dryer screen

Spiral dryer screen is made of polyester which is filled with stuff to reduce the air permeability and intensive the opening, hence to reduce the material loss from the mesh opening.It is suitable for press filter, belt press, pulp-liquor separator and netting belt coal-washer. It has been widely used in all kinds of industries, such as paper printing and drying, food, salt industry, pharmacy, environment protection.
Availability:
Quantity:

Spiral dryer screen

Advantage:

Polyester Spiral Press Filter Fabric is made of polyester spiral dryer fabric which is filled with stuff to reduce the air permeability and intensive the opening, hence to reduce the material loss from the mesh opening.Polyester Spiral Press Filter Fabric is suitable for high-pressure press-filter washer, horizontal belt washer, pulp-liquor separator and netting belt coal-washer. It has been widely used in all kinds of industries, such as printing and drying, food, salt industry, pharmacy, environment protection, process hides, shoe-making, clothing, ceramics, etc.

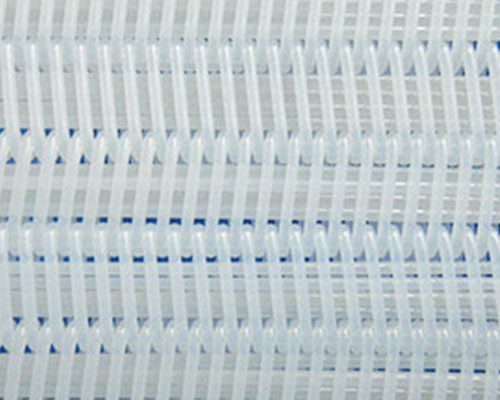

Spiral dryer screen Spiral dryer screen

Main technical parameters:

Type

Model

Spiral loop width(mm)

Filament Dia.

(mm)

Weight Kg/m²

Thickness

(mm)

Air permeability

(m³/m²h)

CFM 127/Pa

Spiral ring monofilament(mm)

Connection wire(mm)

Filler material monofilament

Super loop

09110

10

0.9

1.1

1.0*4

2.21

3.03

6240

390

Large loop

6890B

8

0.68

0.9

0.8*4

2.0

2.45

6080

380

Medium loop

689081

7.15

0.68

0.9

0.9*3

1.9

2.45

5760

360

Medium loop

689082

7.15

0.68

0.9

0.8*3

1.85

2.45

7750

484

Medium loop

689083

7.15

0.68

0.9

Flat yarn 2.1*0.8

1.8

2.45

9000

563

Medium loop

689084

7.15

0.68

0.9

Flat yarn 2.4*0.85

1.85

2.45

8000

500

Small loop

5080

5.2

0.5

0.8

0.6*3

1.5

1.87

4480

280
